20" Bike Rims Set (Front & Rear) Double Wall Alum Alloy 12G 48 Spokes





NOTE: It's inevitable that there will be SCRATCHES or PAINT PEELING during transportation, order carefully if you are concerned.

Please kindly note:

Before installing, please clean the metal scrap in hub firstly;

And put engine oil or lubricating oil on the axle and the six screw holes to disc brake to prevent the screw from damaging!

NOTE:Excluding 6 Bolts

Take attention: this wheel is not for gas motorized bicycle

20 inch Heavy Duty Bike Rim Wheels Set, 12 Gauge 48 Spokes Wheelset, Double Wall Aluminum Alloy 20" Bicycle Rims Set (Front & Rear) (Black) Disc Brake

• 20 inch Heavy Duty Double Wall Aluminum Alloy Bike Rims Set; 12 Gauge 48 Spokes Wheels Set

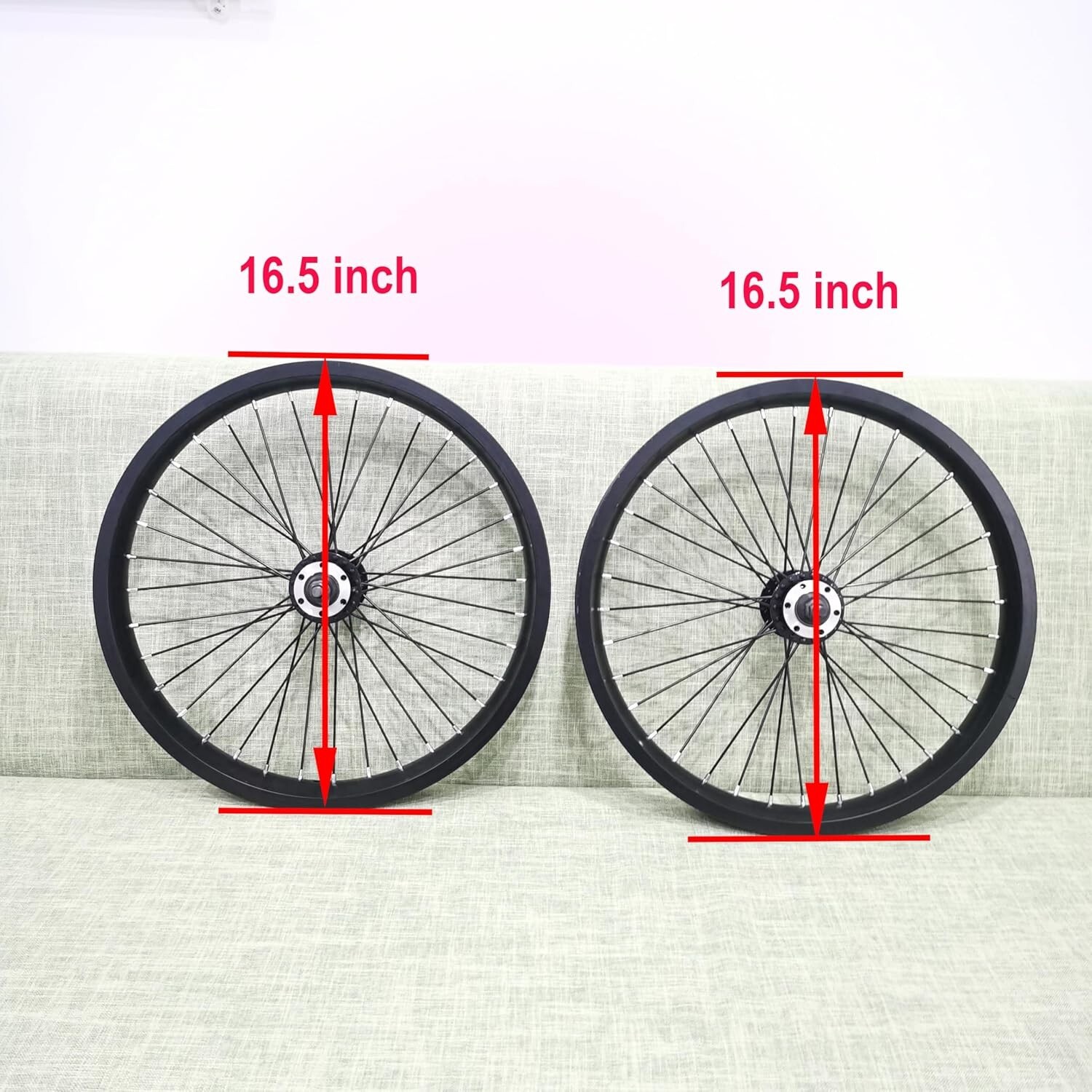

• Rim Size: 16.5 inch (420mm); Rim Width: 1.85 inch (47mm); Rim Inner Width: 1.54 inch (39mm); Hub Diameter 1.18 inch (30mm)
• Fit 20x2.35"-3.5" Tires; Disc Brake and Caliper Brake
• Disc brake and 44mm spacing of center hole to center hole
• Front hub width 100mm, Axle length 145mm; Rear hub width135mm, Axle length 180mm;
• Fit Single Speed and 7/8/9s Multi-Speed Rotary Flywheel
• Suggestion: Recheck and Readjust the Spoke Tension with spoke wrench if possiblely before installation for Double Security.

20 inch Heavy Duty Double Wall Wheels Set 12 Gauge 48 SpokesDetails for Rim SizeRim Size 16.5 inch/420mm

• Aluminum Alloy
• 12 Gauge
• Heavy Duty
• Double Wall

Rim Width 1.85 inch/47mm

• Rim Width 1.85 inch/47mm
• Rim Inner Width: 1.54 inch (39mm)
• Double Wall Aluminum Alloy

Details for Rear RimRear Rim

• Material: Aluminum Alloy
• Sealed Bearings 6200 RS
• 6 holes for disc brake
• Hub Diameter 1.18 inch (30mm)

12 Gauge Heavy Duty 36 Spokes

• Rear Width 135mm, Axle length 180mm
• Fit Single Speed and 7/8/9s Multi-Speed Rotary Freewheel
• 12 Gauge Heavy Duty Double Wall Rim
• 36 Spokes

Details for Front RimFront Rim

• Material: Aluminum Alloy
• Sealed Bearings 6200 RS
• 6 holes for disc brake
• Hub Diameter 1.18 inch (30mm)

12 Gauge Heavy Duty 36 Spokes

• Front Width 100mm, Axle length 145mm
• 12 Gauge Heavy Duty Double Wall Rim
• 36 Spokes
